Colson Wheel Kit for SwerveX
West Coast Products is now offering a Colson Wheel for SwerveX
Colson Wheel for SwerveX (WCP-1424/WCP-1425)
So now you can buy your wheels and other swerve supplies from a one stop shop.
We highly recommend this avenue for joining the Colson Collective.

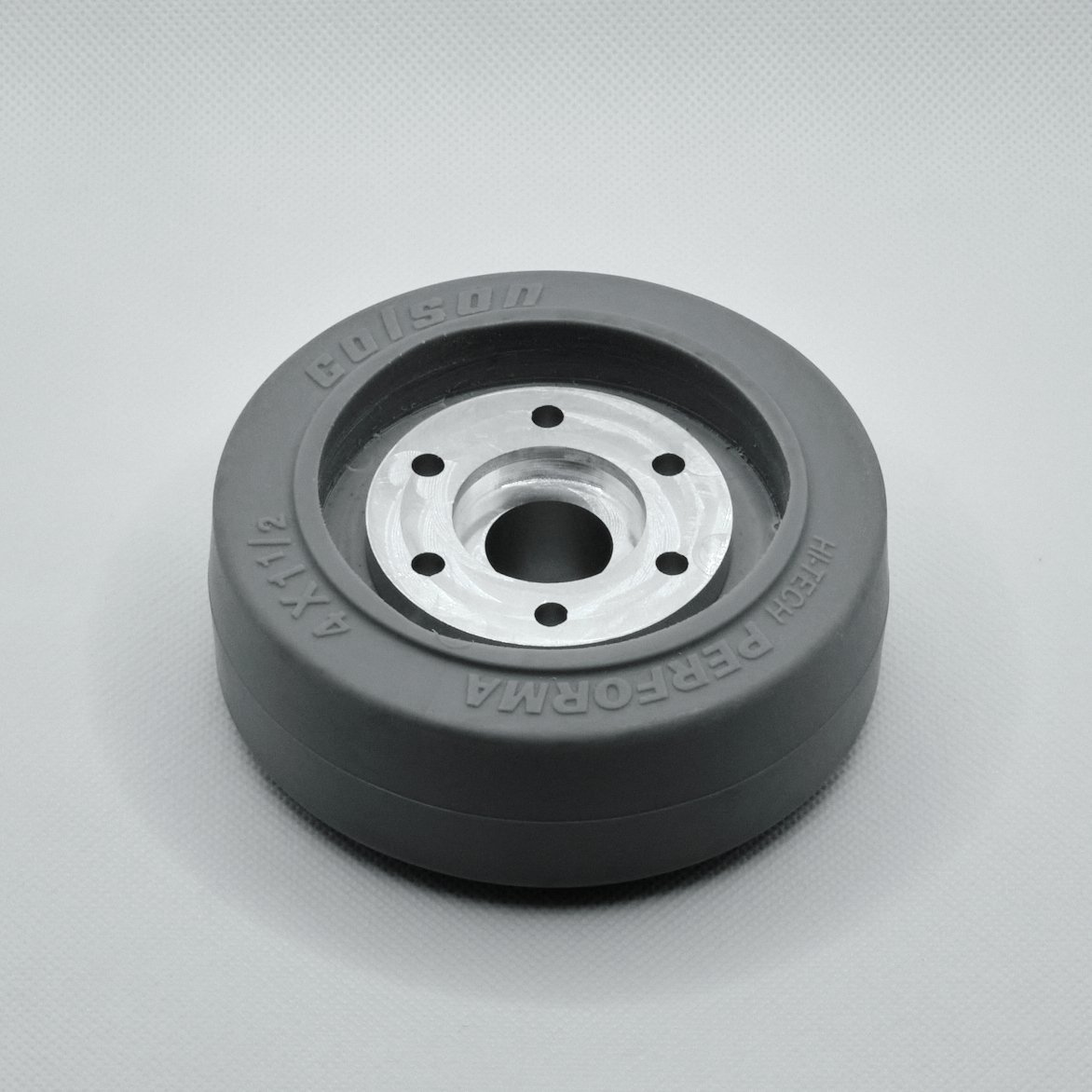

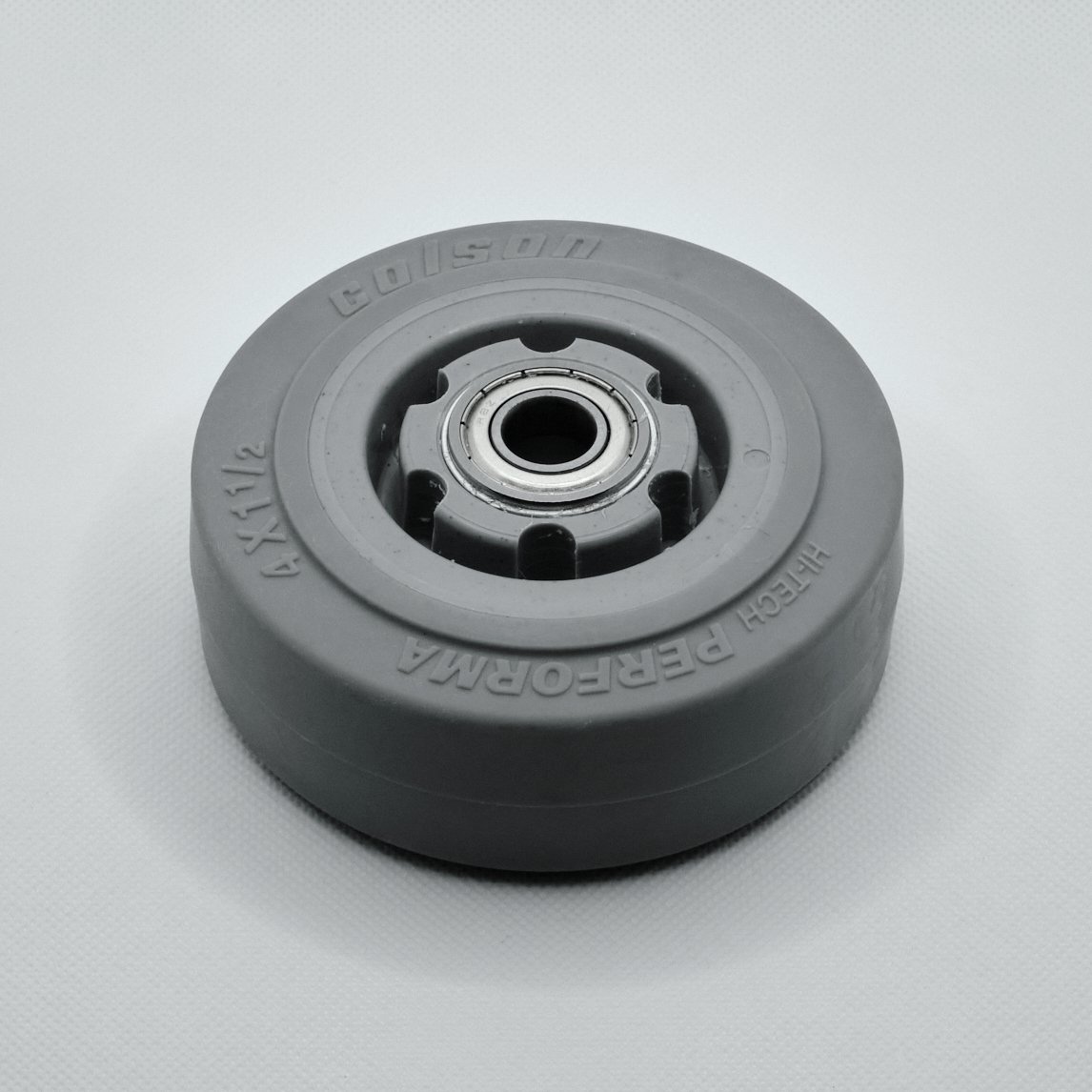

This is a kit to replace the aluminum treaded wheels in West Coast Products SwerveX Swerve Drive Modules with a 4x1.5" Colson wheel. Available as a set of four for a typical robot's worth of wheels, and also in single wheel kits.

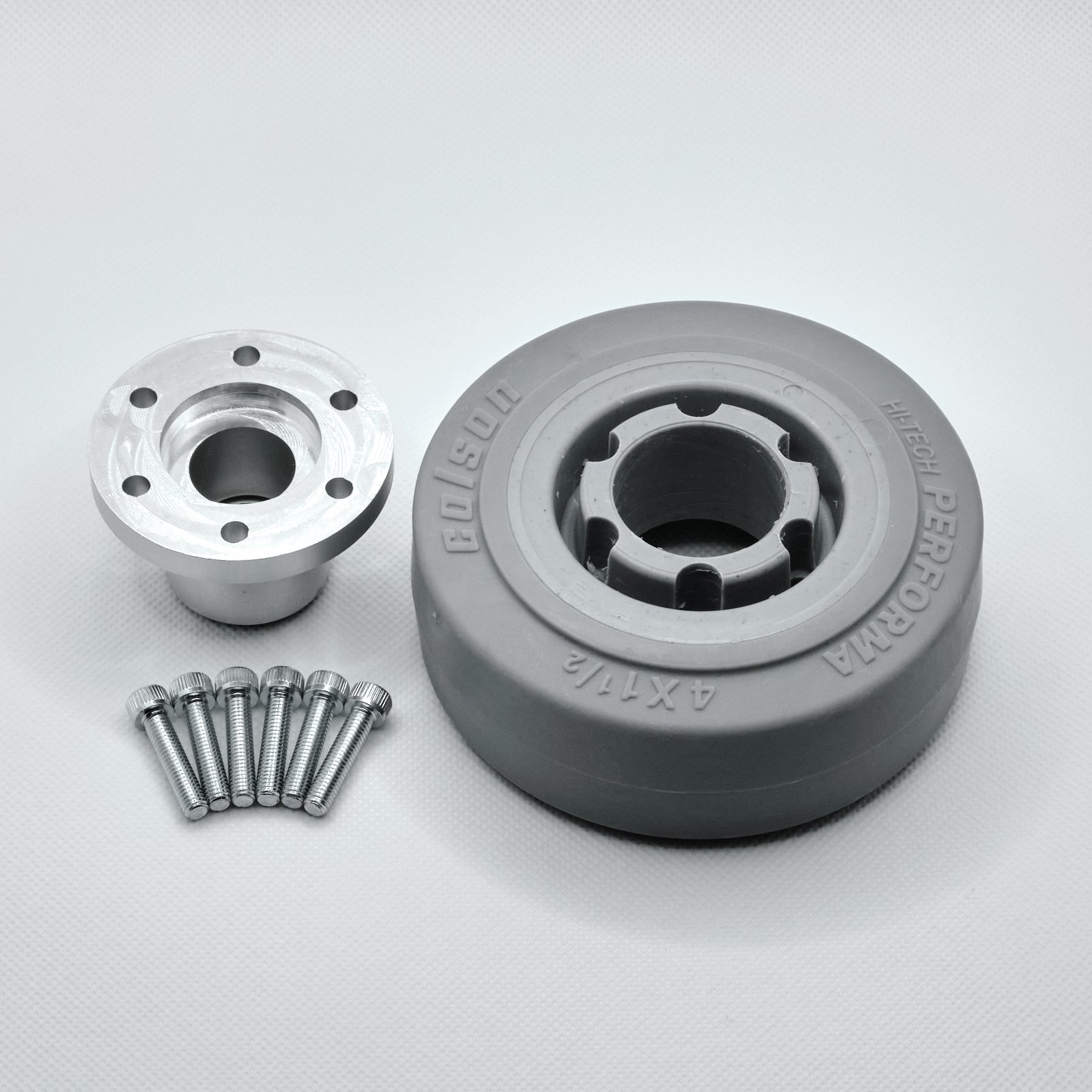

A single wheel kit includes enough components to replace one wheel in one module:
- 1x Modified 4" Colson Wheel
- 1x Custom Aluminum Hub
- 1x R8-ZZ Ball Bearing
- 6X 10-32 x 7/8" SHCS
A set of four wheel kits includes:
- 4x Modified 4" Colson Wheels
- 4x Custom Aluminum Hubs
- 4x R8-ZZ Ball Bearings
- 24X 10-32 x 7/8" SHCS
This does not replace the wheel bevel gear or main axle. This product is compatible with the stock bevel gear and wheel spacing on SwerveX modules.
Replacement wheels can be purchased here:
Replacement Wheels
CAD Files available here:
(Note, CAD files contain a model of the WCP-0233/WCP-0453 Bevel Gear and Bearing for convenience. This gear and bearing is not included with this product.)
